CC SWIPER:

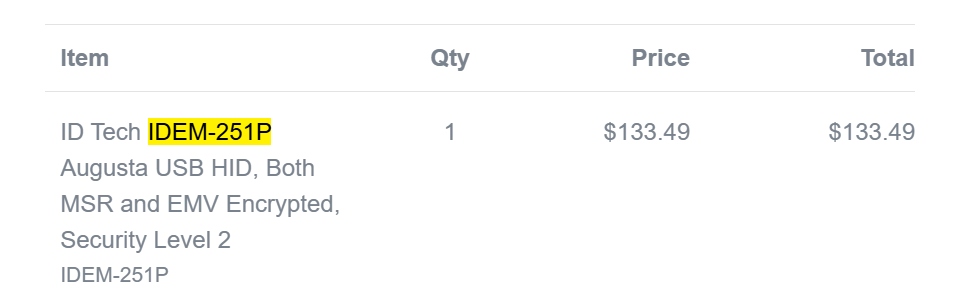

on the recommended card reader for Prima: Works with Authorize and PAYA



https://www.touchwindow.com/SRCH.html?Search=augusta+251





SETUP INSTRUCTIONS:



Go to the below page

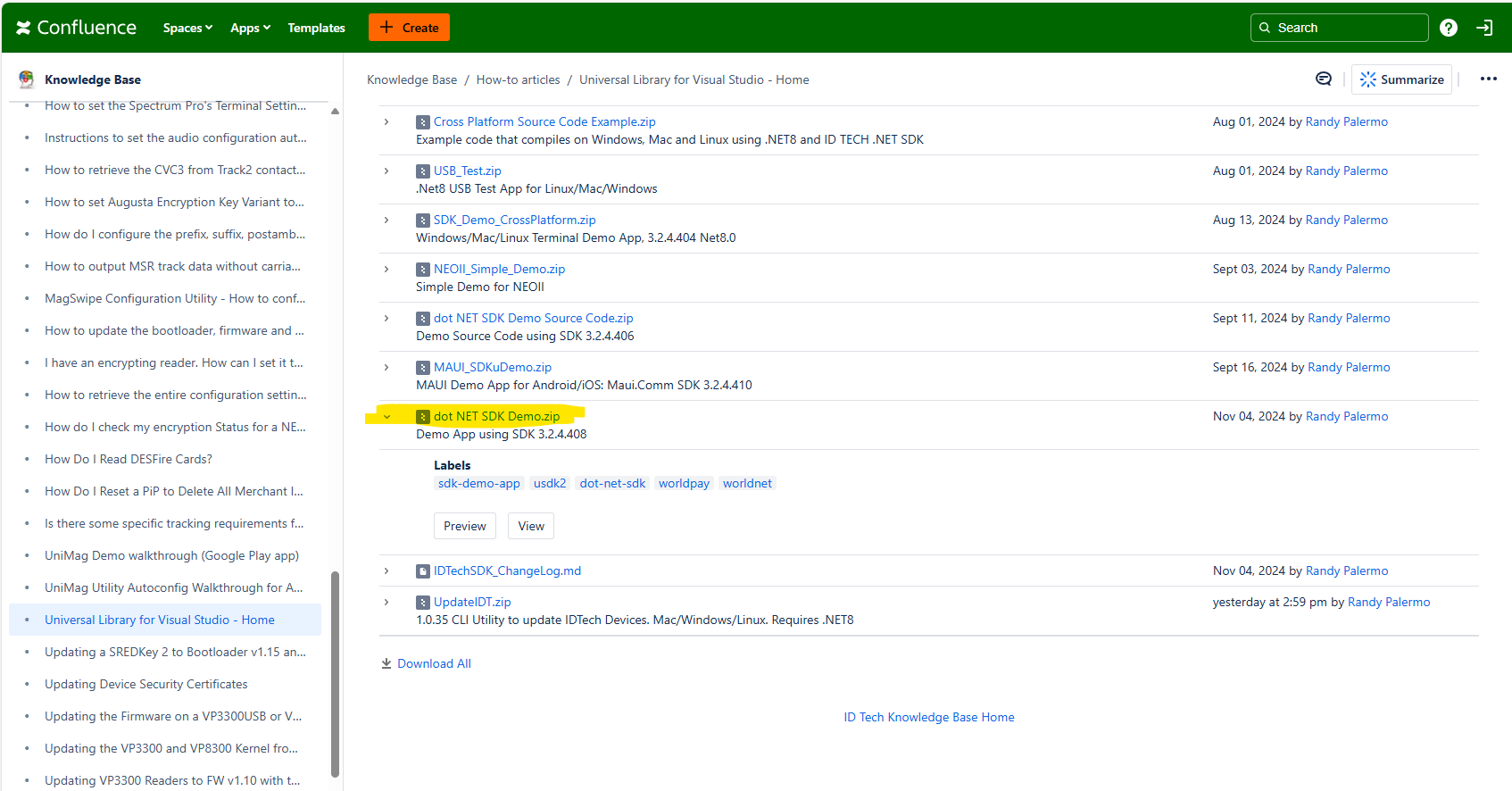

Universal Library for Visual Studio - Home - Knowledge Base - Confluence



Download dot NET SDK Demo.zip





Unzip the download and install the program.



Launch the SDK Demo, it should show the Augusta reader connected if it is plugged in via USB



Perform a backup of the reader settings:

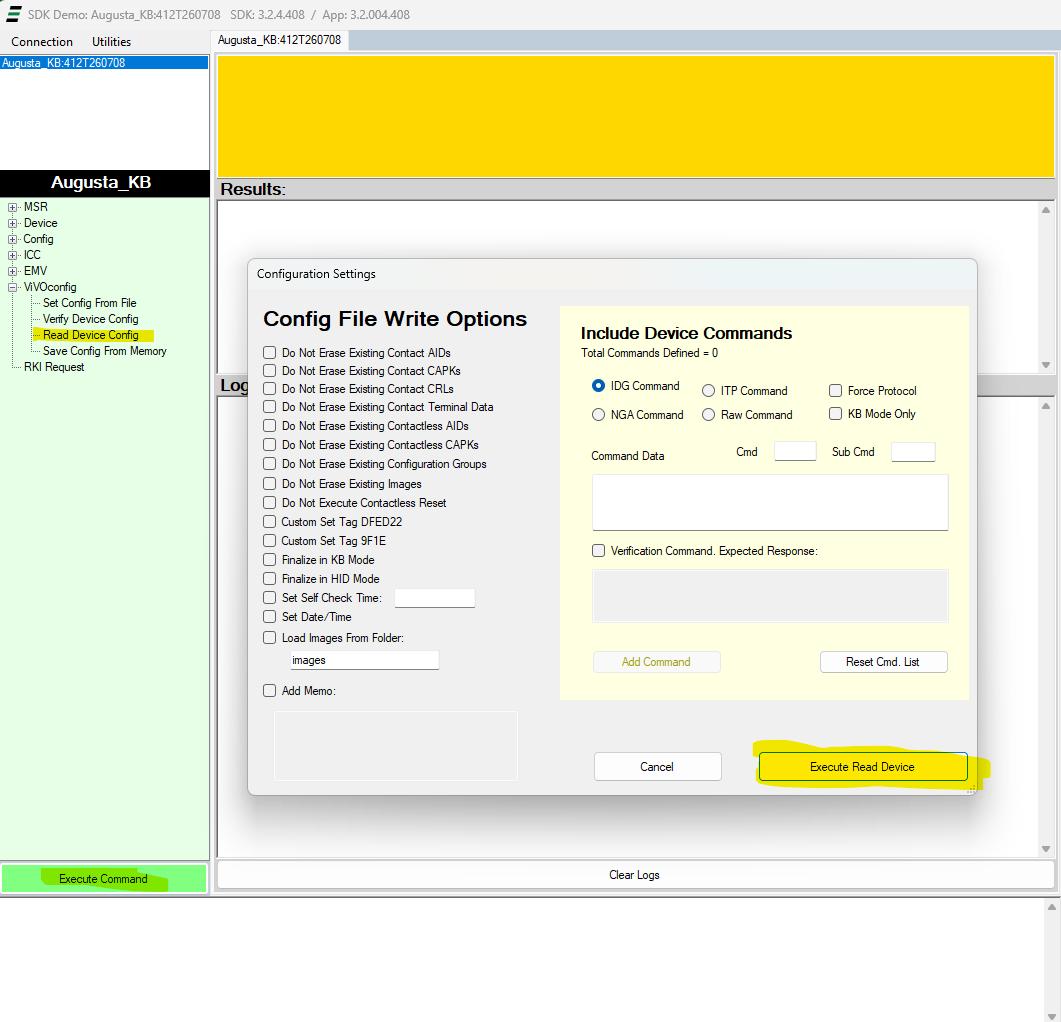

Expand ViVOconfig, and select Read Device Config. Then select Execute Command or double click on Read Device Config, the following screen will popup.



Press Execute Read Device

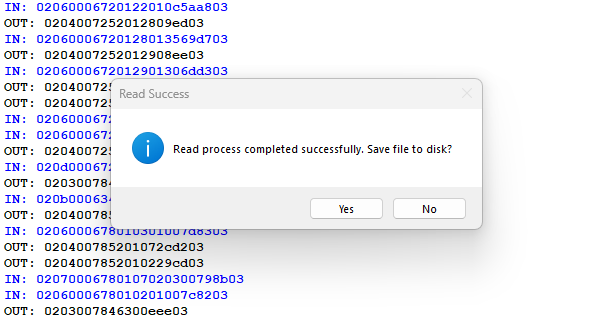

After the device setting are read, it will give you the option to save to disk.





Select yes and save with an appropriate name such as InitialSettingsBackupForAugusta.





After saving backup, we can load configuration file to work with Prima.

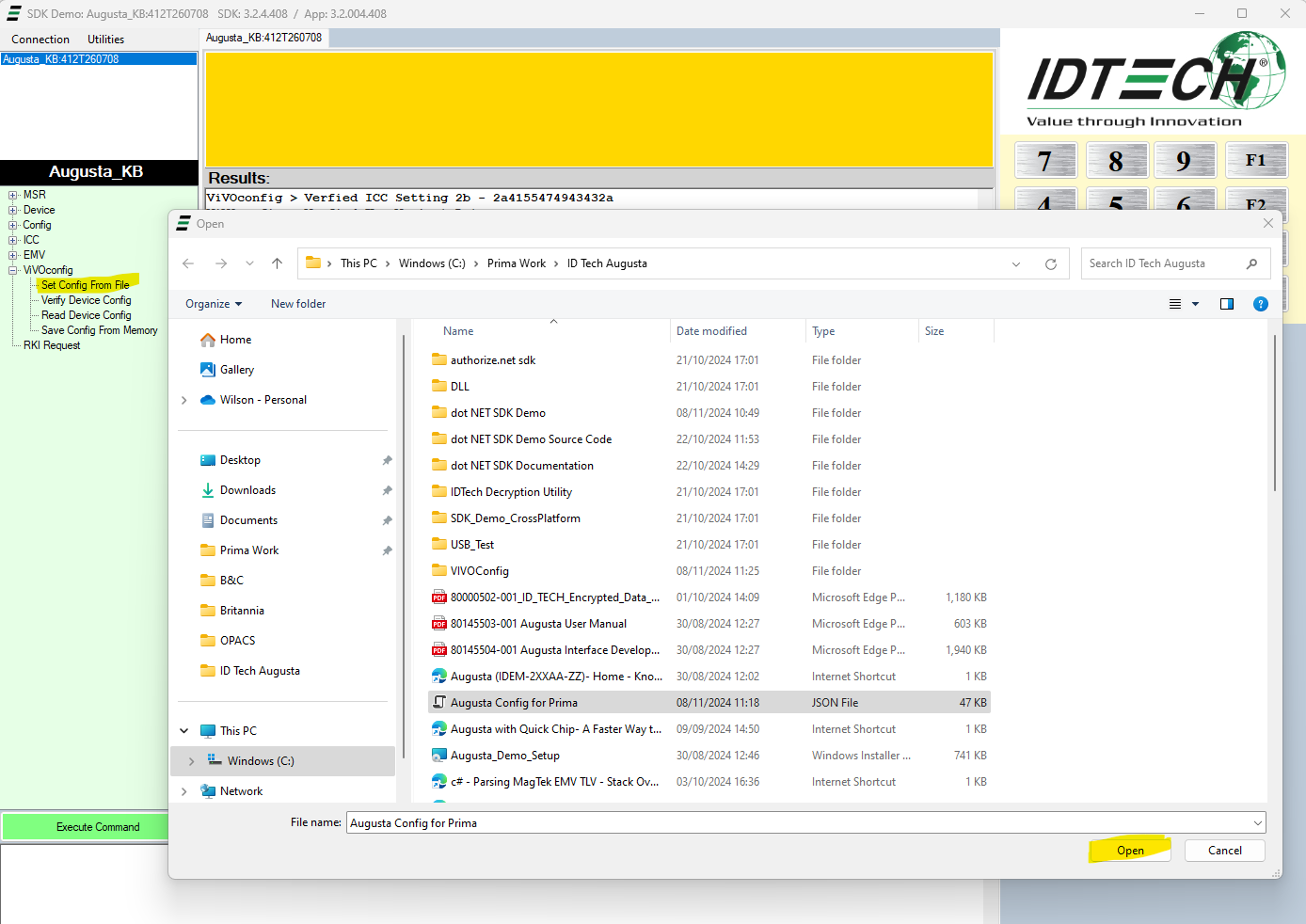

Double-click on Set Config From File, and select the attached file in this email, then press Open







A prompt will show after the configuration finished.is



You can then do a quick test, open Notepad and read a card, text should appear.
